Outstanding performance, no matter how you cut it.

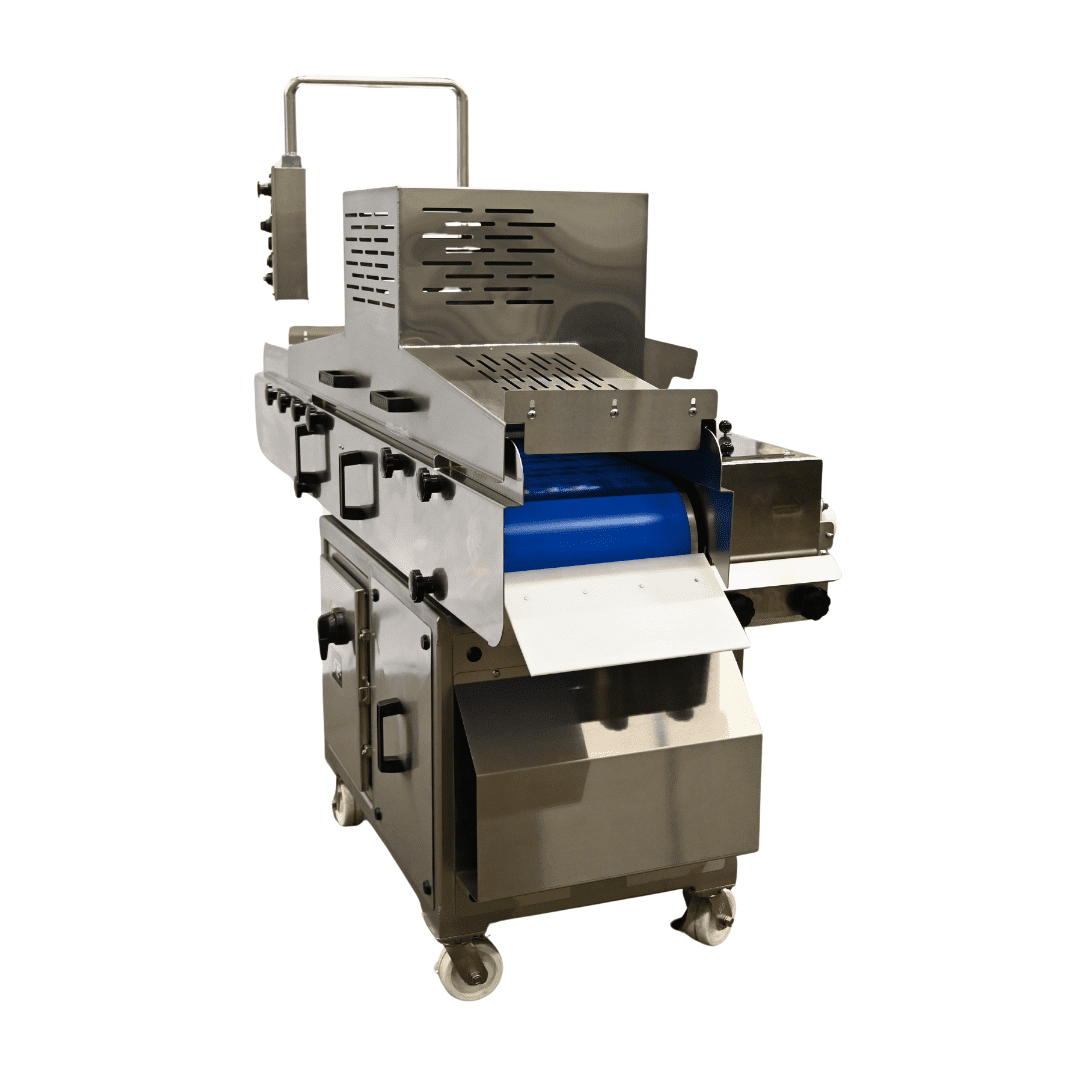

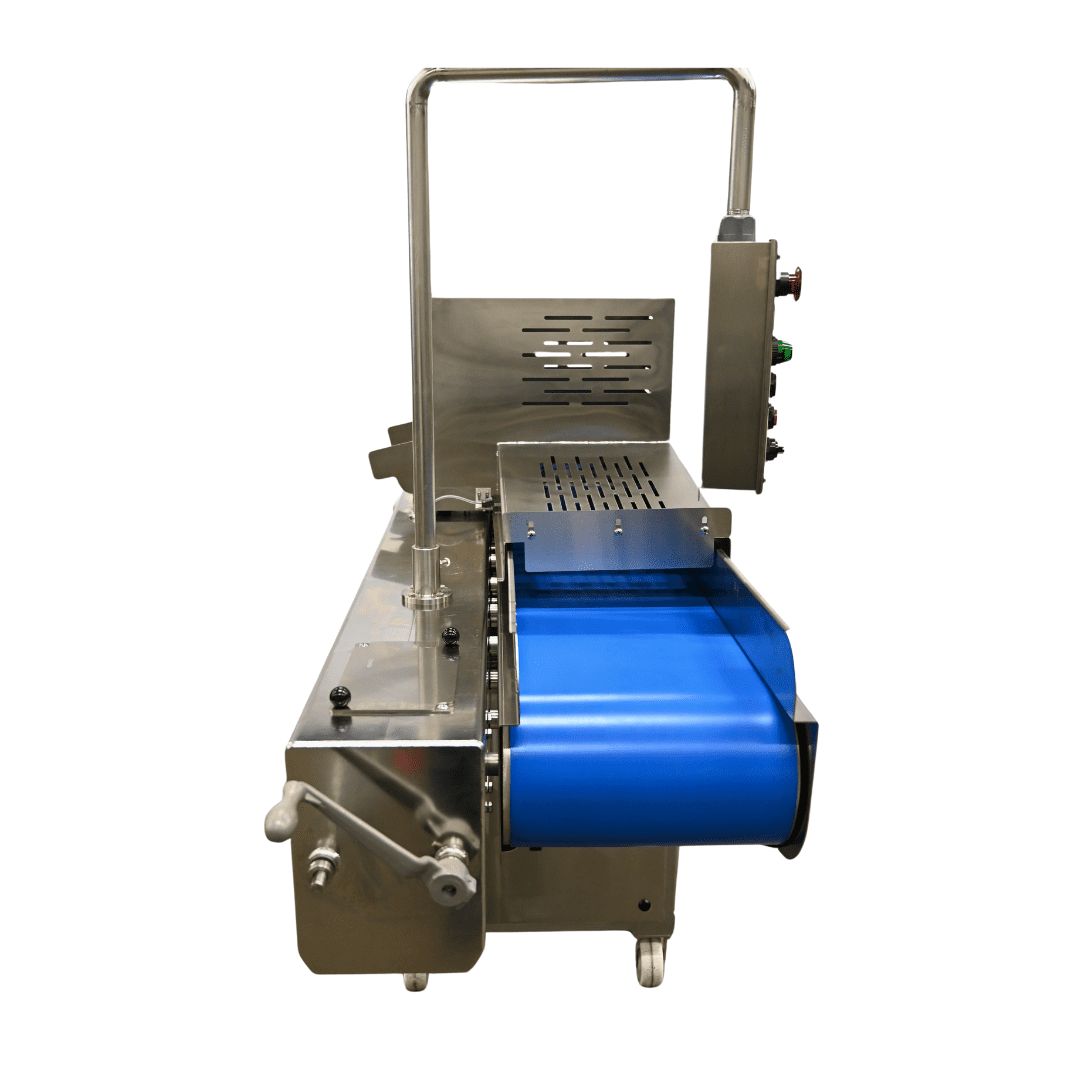

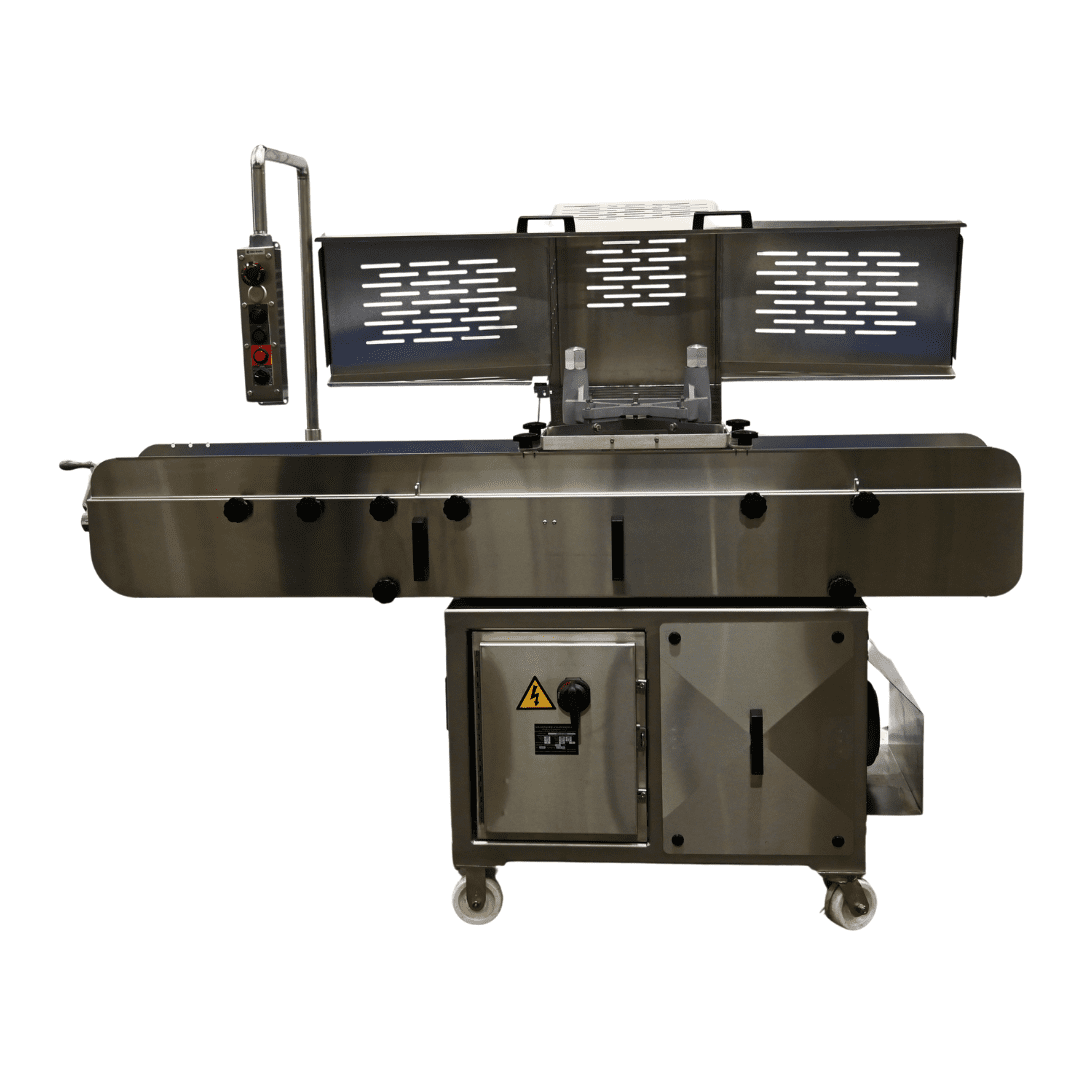

3MGD Dicer

Luthi cutting machines produce square or rectangular segments (two-way cut) for use with meat, poultry, tuna fish, pet food, as well as other soft food products.

DOWNLOAD THE BROCHURE‚Äč

Key features:

  • Optimal product appearance – cut is made with a chopping/guillotine action. The product is not extruded or force-fed, minimizing slivering and fines.

  • Volume and size control – processes up to 5,000 pounds (2270 kg) per hour, dependent on model, cut size and product density. Cut size is variable within the size ranges indicated at page bottom.

  • Design features – simple yet robust construction for years of reliable service. Cantilever construction facilitates removal of product belt for ease of cleaning and wash-down. Settings for cut size, cutting speed and periodic adjustments are readily accessible, as are lubrication points and all replaceable components.

  • Sanitation and safety – the 3MGD dicer is stainless steel, and components in contact with the food product are food-grade approved and designed for ease of cleaning and sanitizing. 3MGD dicers are listed with the U.S.D.A. under “accepted meat and poultry equipment.” Current U.S. and CE safety standards are rigidly adhered to.

  • Factory support – most parts are available for dispatch within 24 hours. Expert technical support is available factory-direct over the telephone.

Luthi 3MGD Dicer Specifications:

Specifications

  • Maximum length: 95in / 2413mm

  • Maximum width: 30in / 762mm

  • Maximum height: 76in / 1930.4mm

  • Belt width: 13.25in / 336.55mm

  • Discharge height: 32in / 812.8mm

  • Maximum stroke: 4in & 6in / 22mm & 35mm

  • Motor: 3 H.P.

  • Net weight: 1000lb / 455kg

  • Crated weight: 1700lb / 772kg



Applications

  • Produces 1/4" to 2-1/4" (6 mm to 57 mm) square dices

  • Produces 1/4"x 1/2" to 3/4" x 1-1/2" (6 mm x 12 mm to 19 mm x 38 mm) rectangular dices
